Before reading this tutorial, create one
context node at overview page level with base entity BTAdminh and bind it to
the context node(which has base entity BTAdminh) of custom controller. (Refer custom controller and data binding and CREATING CONTEXT NODE )
Go to the overview page implementation class
and redefine the method SET_VIEW_GROUP_CONTEXT. Write following code and
activate it.
Let us add three buttons to the overview
page to provide EDIT, SAVE and CANCEL operations. In order to add buttons to
overview page, we need to add the code to the method IF_BSP_WD_TOOLBAR_CALLBACK~GET_BUTTONS
of over view page implementation class.
Go the overview page in UI component and
redefine the method by choosing the option redefine after right clicking on it.
After redefining it, double click on it to open the method.

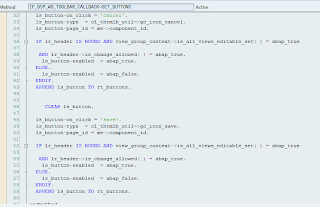

Add the following code activate it.
When
you are adding a new button to standard SAP overview page, do not forget to
call the super class method.
ON_CLICK: we will assign event handler name
to this property. So when this button is clicked, event handler will be
triggered. (event handler name is case sensitive ).
TYPE : we can specify an icon over here. CL_THTMLB_UTIL
has number of icons.
PAGE_ID : it is page id in framework language. It could
be look like this. C1_W1_V1 where C1 is your component controller and W1 is
window and V1 is your current view.
Enabled : if this property is true, then
button is enabled else disabled.
It is a standard scenario that once you
click on EDIT button, page will be in editable mode. In this mode only we will
enable save and cancel buttons. Edit button will be disabled.
When user clicks either SAVE or CANCEL,
then again EDIT button will be enabled. SAVE and CANCEL buttons will be
disabled.
We are manipulating the ENABLED property of
each button exactly in above mentioned way.
We will
discuss the scenario for EDIT button.
Its clear that , to edit or save or cancel,
there should be data. So we are reading the data from current context node into
lr_header.
First conditions is LR_HEADER is BOUND,
which means if there is data, second is LR_header->IS_CHANGE_ALLOWED which
means, if data can be changed (why we are testing this condition because the
same data may be locked by different user at this point of time) and last
condition is VIEW_GROUP_CONTEXT->IS_ALL_VIEWS_EDITABLE_SET ( ) = ABAP_FALSE
which means, no view is already in EDIT mode, then enable the EDIT button else
disable it.
You can try to understand the logic for remaining buttons.
Activate and test the application.
We can notice all buttons are coming under
group MORE. This is happened because we forgot to redefine one more method IF_BSP_WD_TOOLBAR_CALLBACK~GET_NUMBER_OF_VISIBLE_BUTTONS.
This method controls the no of visible buttons on tool bar. Redefine it and
give any integer value greater than 3.
If you give 4, then four buttons will be visible on tool bar and
remaining buttons if exists any will be displayed as above.
